4-Channel Vehicle Video Monitoring Main Unit
The 4-channel vehicle video monitoring main unit is suitable for agricultural machinery, cranes, and trucks, designed solely for monitoring purposes without data storage functionality.
◆ This device is suitable for agricultural machinery, cranes, and trucks, solely for monitoring purposes and does not have data storage functionality.
◆ Supports up to 4 cameras and automatically splits the video feed into multiple screens.
◆ Each of the 4 cameras can be individually triggered to automatically display a single screen.
◆ In trigger mode, there is no specific triggering order; after multiple triggers, it switches to multi-screen mode after 10 seconds.
◆ Cameras are powered by the device itself, ensuring easy wiring.
◆ Each channel can be individually set for normal or mirrored image display.
◆ Equipped with overvoltage, undervoltage, and overload protection.
◆ Supports up to 4 cameras and automatically splits the video feed into multiple screens.
◆ Each of the 4 cameras can be individually triggered to automatically display a single screen.
◆ In trigger mode, there is no specific triggering order; after multiple triggers, it switches to multi-screen mode after 10 seconds.
◆ Cameras are powered by the device itself, ensuring easy wiring.
◆ Each channel can be individually set for normal or mirrored image display.
◆ Equipped with overvoltage, undervoltage, and overload protection.

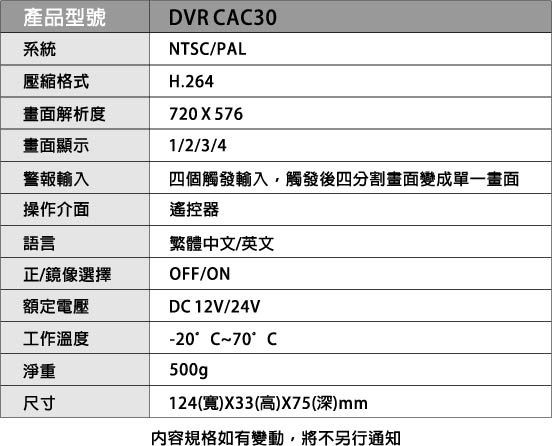

| 產品型號 Product Model |
DVR CAC30 |
|
系統 System |
NTSC/PAL |
|
壓縮格式 Compression Format |
H.264 |
|
畫面解析度 Display Resolution |
720 X 576 |
|
畫面顯示 Display Output |
1/2/3/4 |
|
警報輸入 Alarm Input |
四個觸發輸入,觸發後四分割畫面變成單一畫面 |
|
操作介面 Operating Interface |
遙控器 |
|
語言 Language |
繁體中文/英文 |
|
正/鏡像選擇 Mirror/Normal Selection |
OFF/ON |
|
額定電壓 Rated Voltage |
DC 12V/24V |
|
工作温度 Operating Temperature |
-20' C~70' C |
| 淨重 Net Weight | 500g |
|
尺寸 Dimensions |
124(寬)x33(高)x75(深)mm |
Specifications are subject to change without prior notice.
Power:
◆ Professional vehicle power supply design with 12/24V DC input.
◆ Controlled via remote control
Data Storage:
◆ No data storage functionality
