Blind Spot Detection System (Passenger Cars & 12V Commercial Vehicles)
Enhance your visibility, prevent sudden incidents, and increase driving safety.
It can simultaneously calculate the speed, angle, and relative displacement of 64 objects, detecting targets up to 50 meters away.
|

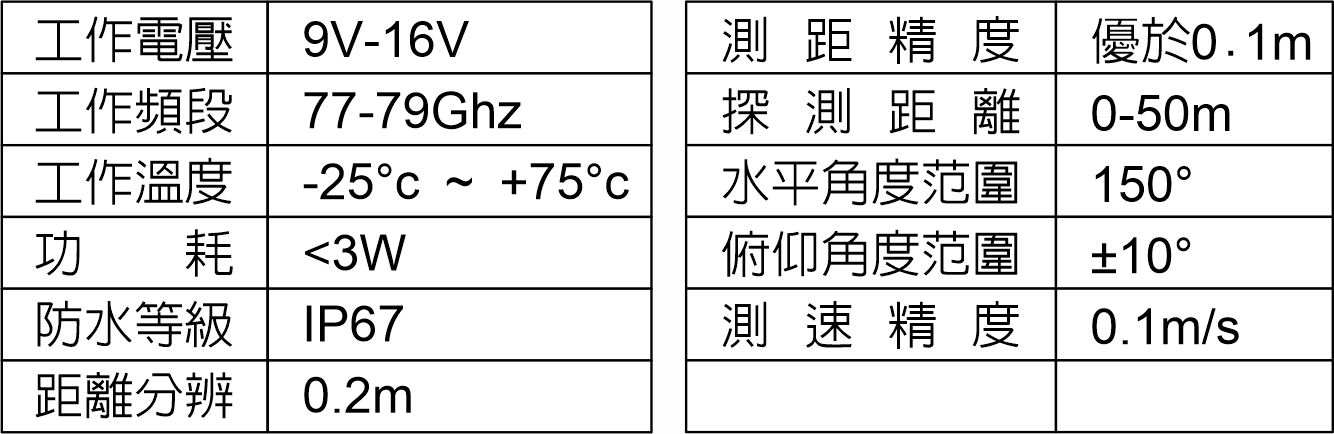

工作電壓 Operating Voltage |
9V-16V |
|
工作頻段 Operating Frequency Band |
77-79Ghz |
|
工作温度 Operating Temperature |
-25%c ~ +75 c |
|
功耗 Power Consumption |
<3W |
|
防水等級 Waterproof Rating |
IP67 |
|
距離分辨 Distance Resolution |
0.2m |
|
測距精度 Distance Measurement Accuracy |
優於0.1m |
|
探測距離 Detection Range |
0-50m |
|
水平角度範圍 Horizontal Angle Range |
150度 |
|
俯仰角度範圍 Pitch Angle Range |
正負10度 |
|
測速精度 Speed Measurement Accuracy |
0.1m/s |
Specifications are subject to change without prior notice.

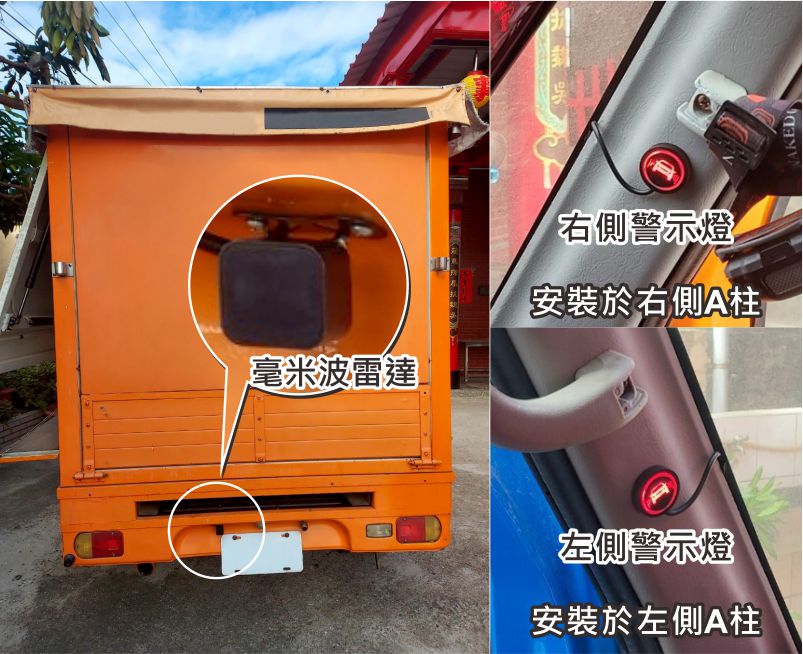

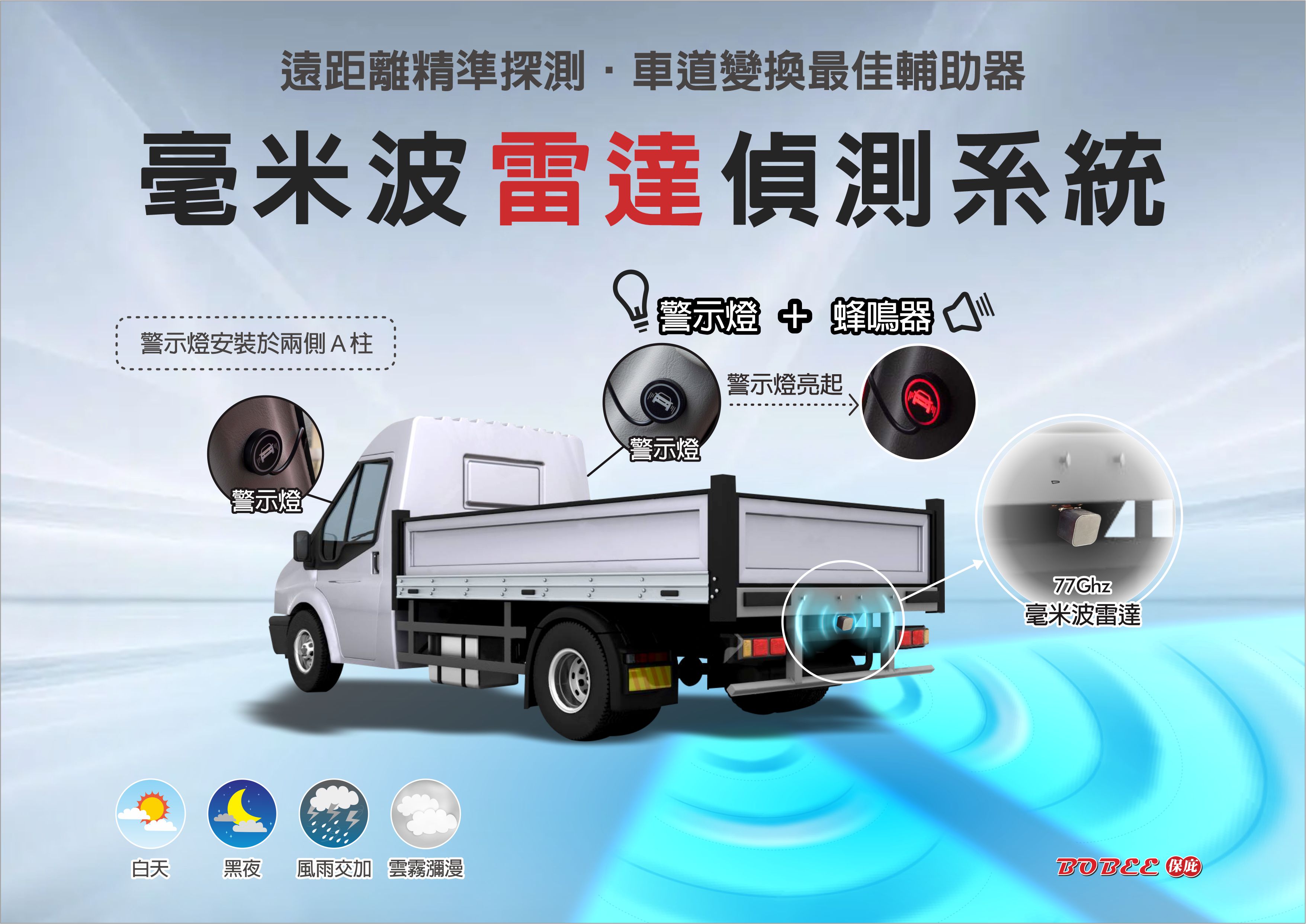

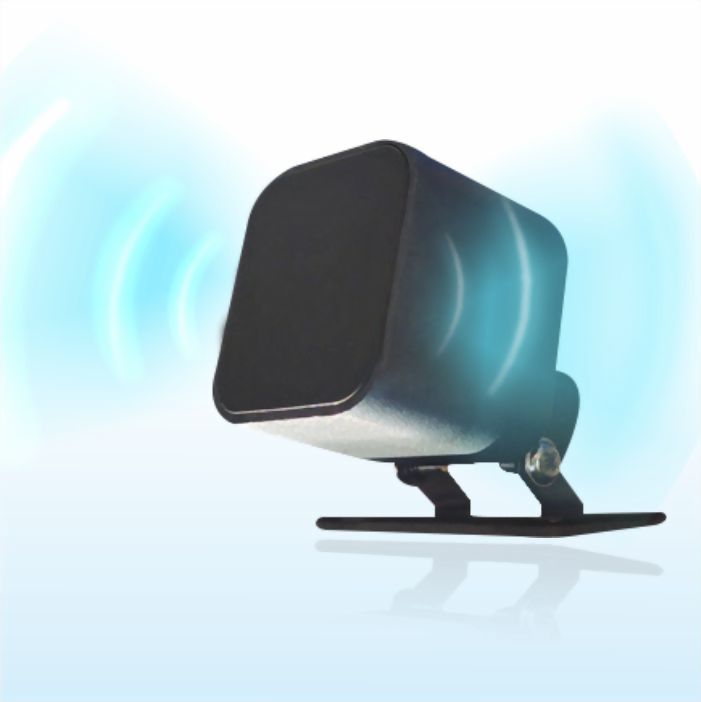

This system uses millimeter-wave radar sensors to detect objects on both sides behind the vehicle, providing early warning while driving normally or changing lanes.

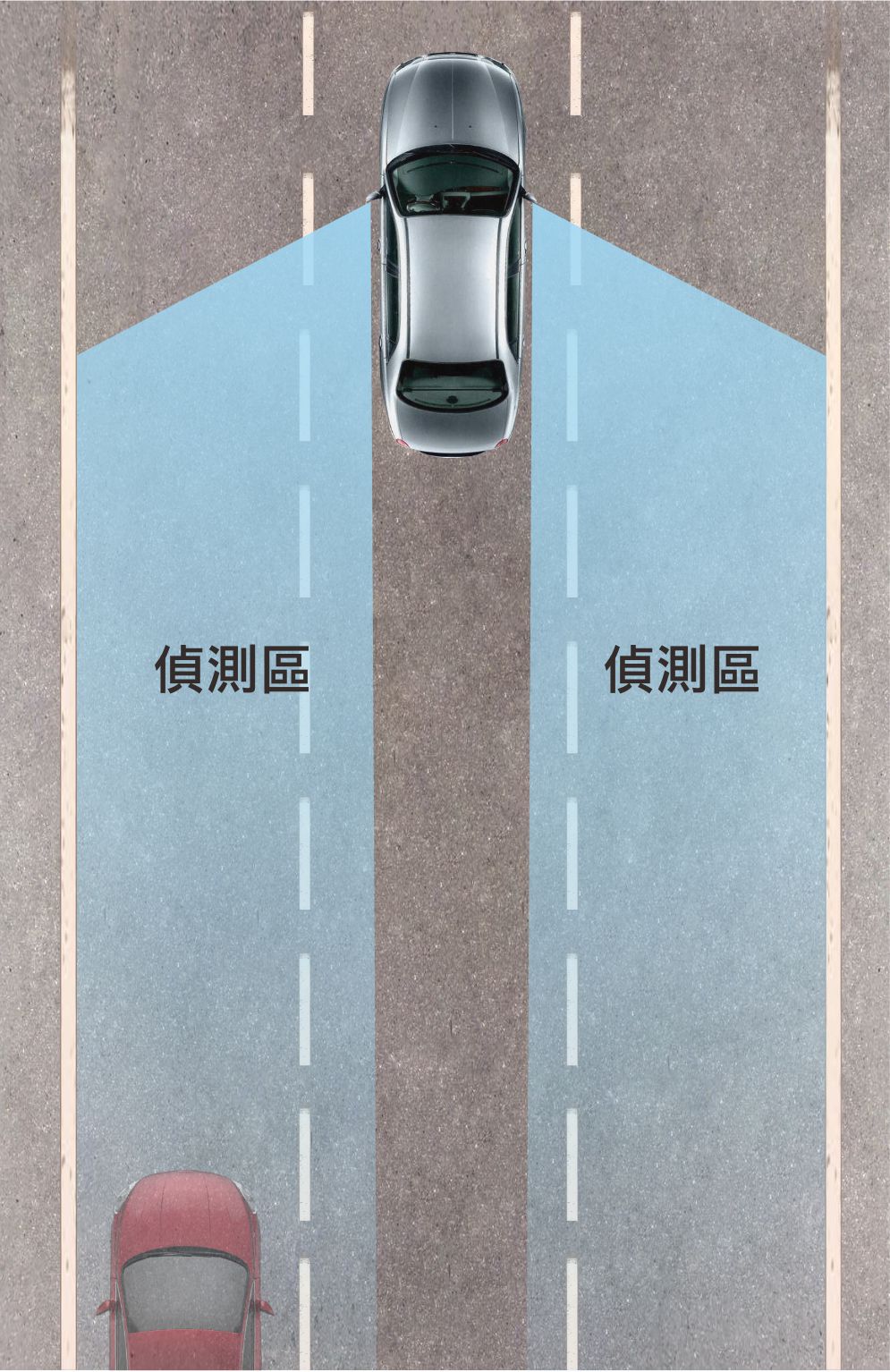

Blind Spot Detection Assistance Function (BSD)
System activation speed: V ≥ 10 km/h

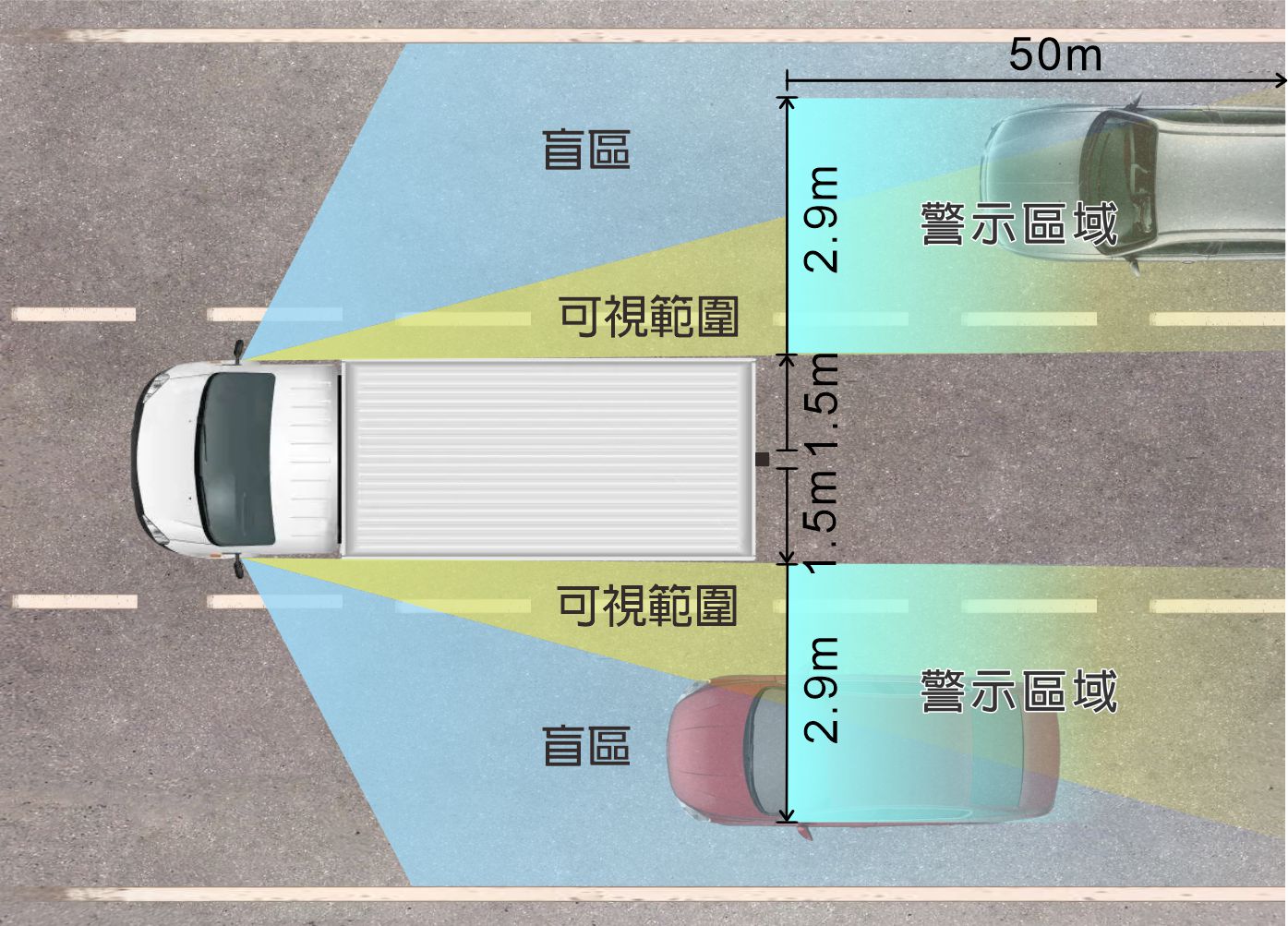

warning range: 1.5m ≤ X ≤ 4.4m; -4.4m ≤ X ≤ -1.5m
Longitudinal warning range: 0m ≤ Y ≤ 10m
Warning strategy: Alerts are triggered for moving targets within the detection area. Includes active overtaking, passive overtaking, and maintaining the same speed while following a vehicle.
Lane Change Assistance Function (LCA)
Lateral warning range: 1.5m ≤ X ≤ 4.4m; -4.4m ≤ X ≤ -1.5m
Longitudinal warning range: 0m < Y ≤ 50m
Warning strategy: TTC ≤ 5.0s.
Active Overtaking Alert Function (AOA)
Activation speed: V ≥ 10 km/hLateral warning range: 1.5m ≤ X ≤ 4.4m; -4.4m ≤ X ≤ -1.5m
Longitudinal warning range: 0m < Y ≤ 10m
