Blind Spot Radar Detection and Warning System

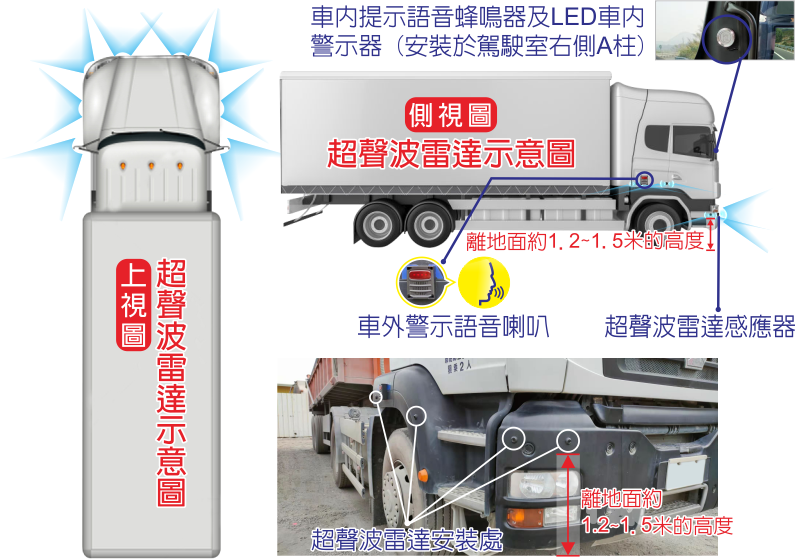

When people or vehicles approach the right front or front-right side of the vehicle, the system immediately detects and warns both the driver and those outside the vehicle. The Blind Spot Radar Detection and Warning System is installed on the lower bumper below the A-pillars and at the wheel arches on both sides of large vehicles. Areas beyond the driver's line of sight become blind spots, making it difficult to notice approaching people or vehicles in time. This system ensures safer driving.
With the installation of the Blind Spot Radar Detection and Warning System, it immediately senses and warns the driver and others outside the vehicle when people or vehicles approach the right front or front-right side, ensuring safer driving.

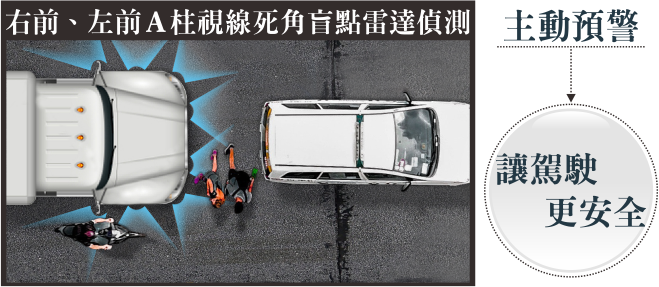

Proactive Alerts
When people or vehicles come within 1.2-1.5 meters of the front A-pillar or the right car door, the warning system immediately activates. The in-vehicle buzzer will issue a voice alert to the driver, saying, "Attention, right side." Meanwhile, the external alarm will issue a voice alert to people and vehicles outside, saying, "You have entered the blind spot."
Accurate Detection
Detection range: 1.2 to 1.5 meters.
Audio-Visual Alerts
The vehicle is equipped with an LED warning light and voice buzzer inside, while the exterior features an LED audio-visual buzzer.

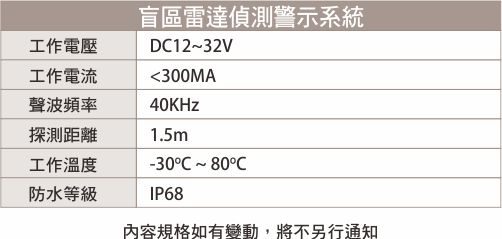

Blind Spot Radar Detection Warning System
|
工作電壓 Operating Voltage |
DC12~32V |
|
工作電流 Operating Current |
<300MA |
|
聲波頻率 Sound Wave Frequency |
40KHz |
|
探測距離 Detection Range |
1.5m |
|
工作温度 Operating Temperature |
-30度 ~ 80度 |
|
防水等級 Waterproof Rating |
IP68 |
Specifications are subject to change without prior notice.
◆ Designed with a wide voltage power supply (DC12-32V).
◆ Enhanced multi-stage power filtering technology for anti-interference.
◆ Professional IP68-rated waterproof main unit.
◆ Professional aviation-grade connectors, waterproof and dustproof.
◆ Specialized ultrasonic radar sensor for trucks, waterproof and shockproof.
Traffic Accident News Links◆ Designed with a wide voltage power supply (DC12-32V).
◆ Enhanced multi-stage power filtering technology for anti-interference.
◆ Professional IP68-rated waterproof main unit.
◆ Professional aviation-grade connectors, waterproof and dustproof.
◆ Specialized ultrasonic radar sensor for trucks, waterproof and shockproof.
