A02 Side Camera
Waterproof, shockproof, and low-power consumption camera
◆ Waterproof rating: IP68
◆ Shockproof design
◆ Low power consumption
◆ IR illumination distance up to 13 meters
◆ Low light performance below 0.001Lux (with IR on)
◆ Net weight: 150g
◆ Shockproof design
◆ Low power consumption
◆ IR illumination distance up to 13 meters
◆ Low light performance below 0.001Lux (with IR on)
◆ Net weight: 150g

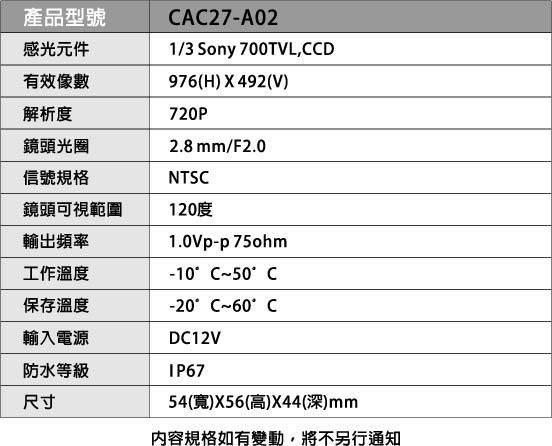

| 產品型號 Product Model |
CAC27-A02 |
|
感光元件 Image Sensor |
1/3 Sony 700TVL, CCD |
|
有效像數 Effective Pixels |
976(H)*492(V) |
|
清晰度 Resolution |
720P |
|
鏡頭光圈 Lens Aperture |
2.8 mm / F2.0 |
|
信號規格 Signal Specification |
NTSC |
|
鏡頭可視範圍 Lens Field of View |
120度 |
|
輸出頻率 Output Frequency |
1.0Vp-p 75ohm |
|
工作温度 Operating Temperature |
-10' C~50' C |
|
保存温度 Storage Temperature |
-20' C~60' C |
|
輸入電源 Input Power |
DC12V |
|
防水等級 Waterproof Rating |
IP67 |
|
尺寸 Dimensions |
54(寬)x56(高)x44(深)mm |
Specifications are subject to change without prior notice.
